Description
Overview
The Böning AHD-SEC2 integrates supported FLIR cameras into an AHD-VDCU video-control installation.
Operation and integration

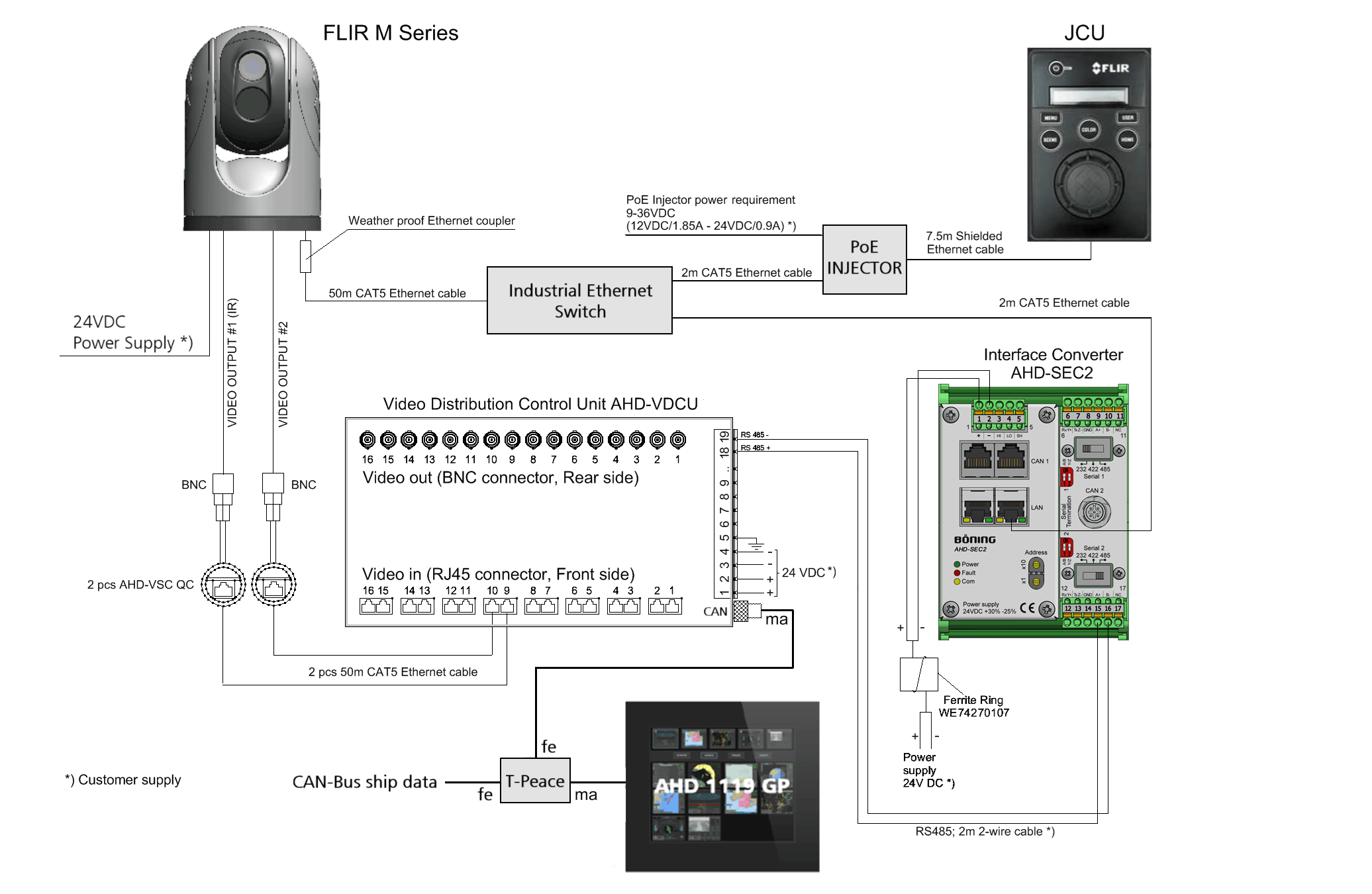

It receives RS485 Pelco-D commands from AHD-VDCU and translates them into the camera-network protocol through two LAN ports. This permits operation from a configured Böning touchscreen, including an AHD1119 GP application. The source identifies FLIR M-series cameras as adapted and tested; other cameras require a separate adaptation.
Key features
- Serial-to-network camera-control gateway
- Two LAN interfaces
- Control through the AHD-VDCU/CAN system
- Flexible project-specific configuration
Technical specifications
- Dimensions W x H x D: 93 x 125 x 90 mm.
- Weight: Approx. 0.35 kg.
