Description
Overview
The Böning AHD-EOP EM provides mobile emergency start/stop operation alongside the normal AHD-EOP/AHD-DEOP control stations.
Operation and integration
It supports engine operation if transponder keys are lost or the usual start/stop arrangement malfunctions. It can also support maintenance arrangements intended to prevent unintended engine starting.
Key features
- Mobile engine-room control unit
- Start and stop functions
- Integrated emergency stop
- For systems equipped with AHD-EOP/AHD-DEOP
Technical specifications

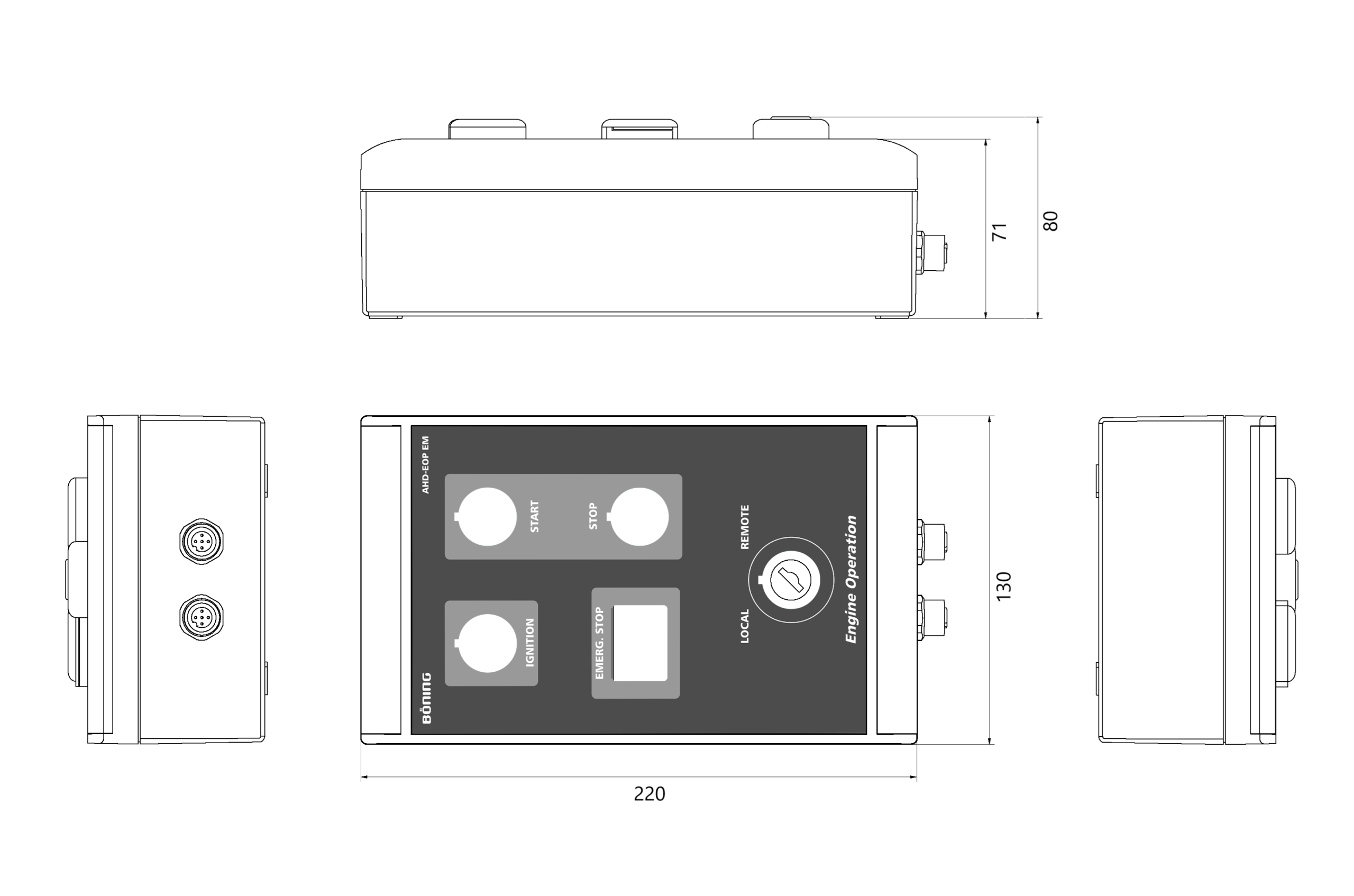

- Dimensions W x H x D: 219.6 mm x 79.7 mm x 130 mm.
- Weight: Appr. 1.4 kg.
- Operating temperature: -25°C … +70°C.
- Storage temperature: -50°C … +85°C.
- Power supply: 24 V DC (+30%/-25%).
- Protection class: IP 65.
