Description
Overview

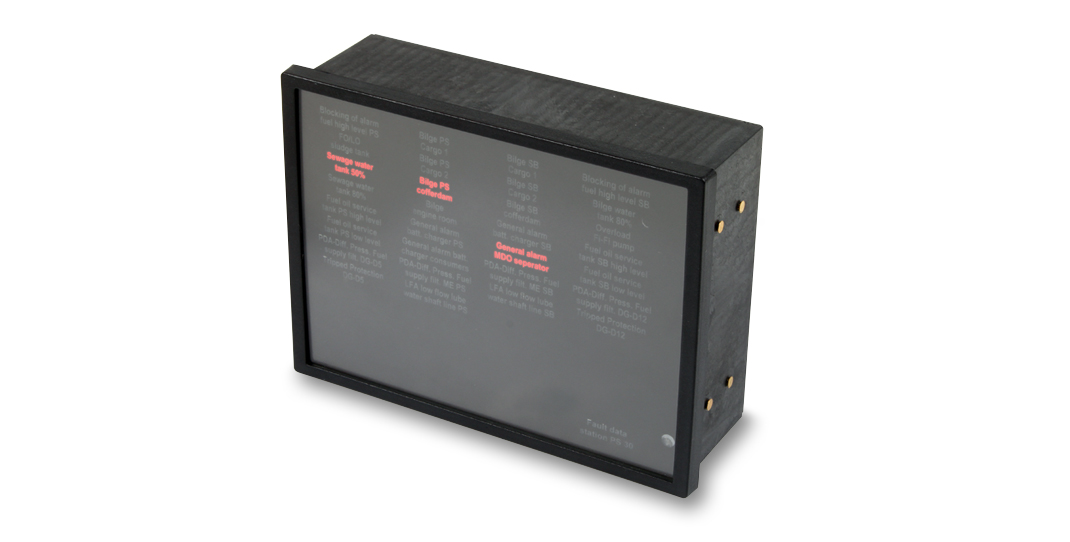

The Böning Kompakt EDA47 is a compact alarm panel receiving serial data from AHD-PS 47, AHD-PS 47C or another compatible source.
Operation and integration

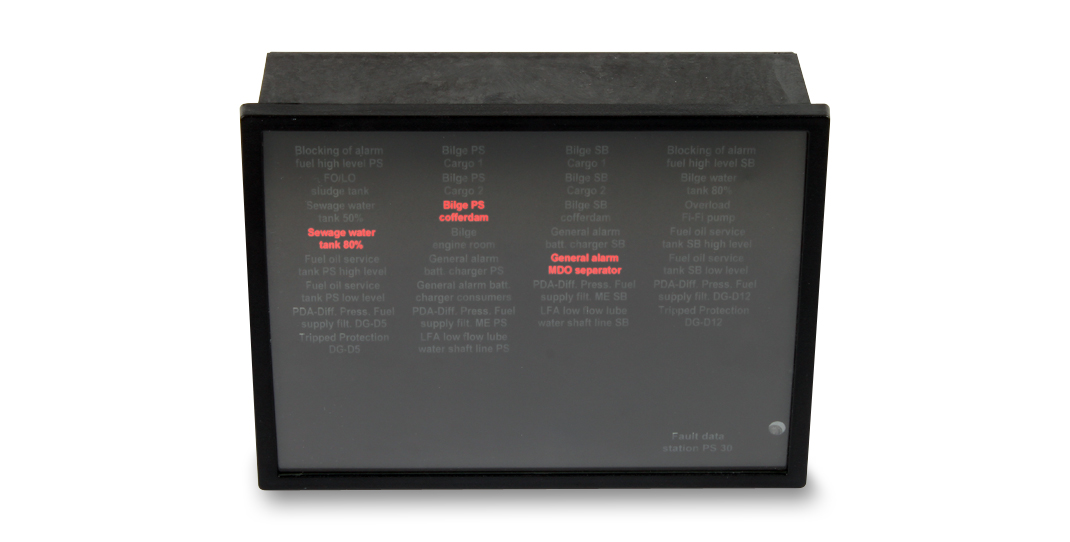

Forty-eight illuminated text fields are automatically dimmed for bridge use. Each message can be configured as an alarm or indication, with separate on/off delays from 1 to 99 seconds. Serial acquisition reduces field wiring.
Key features
- Integrated horn
- External-horn and group-message relay outputs
- External acknowledgement and lamp-test inputs

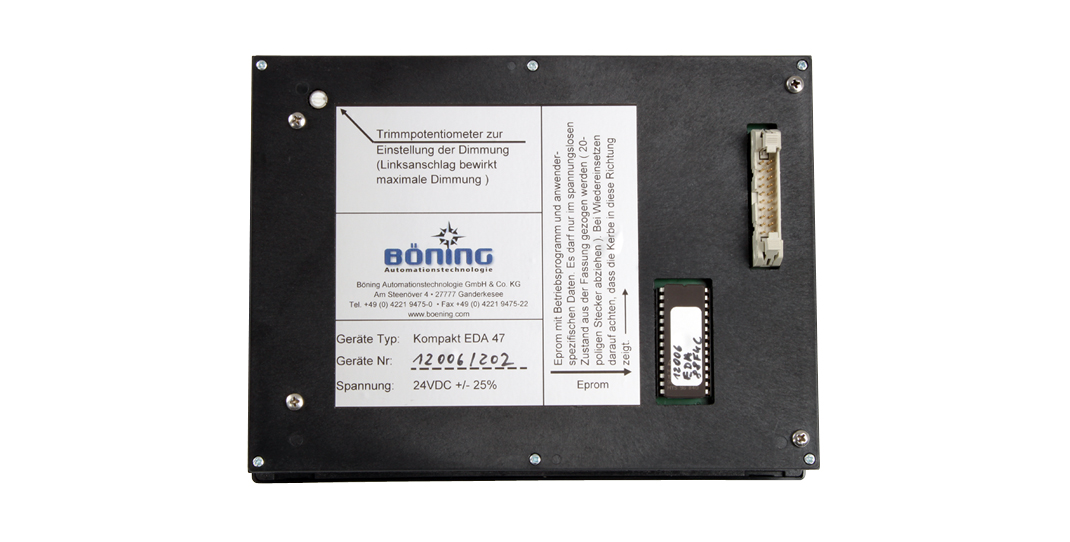

- Separate terminal block
- 192 × 144 mm front
- IP23 front, with optional IP54 attachment
- Console, panel or control-box installation
