Description
Overview
The Böning AHD-DPS02 A07 adds seven navigation or signal-light circuits to an AHD-DPS02 G14 installation.
Operation and integration

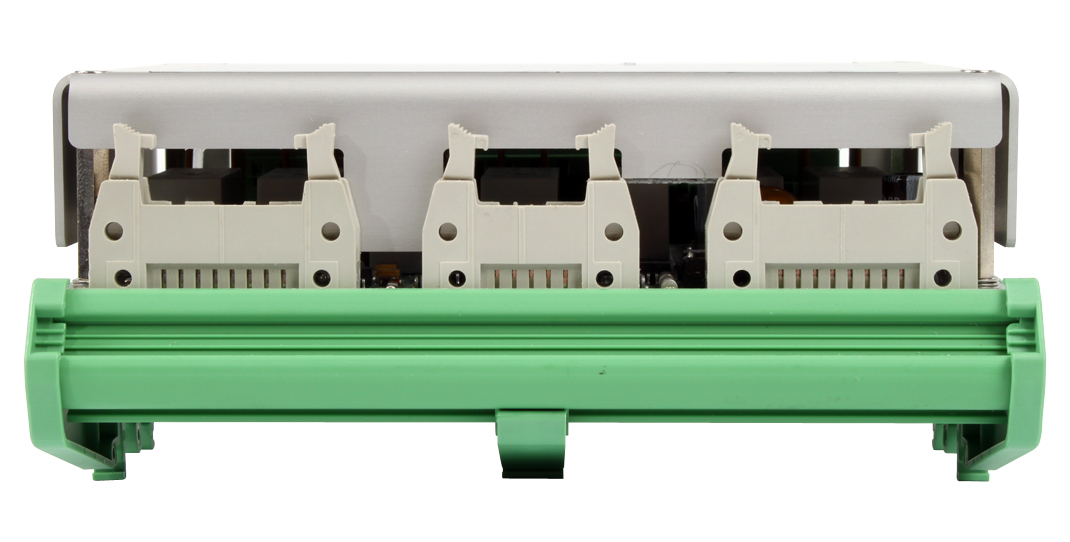

A ribbon cable connects it directly to the base module. Each channel is individually protected and monitored for short circuits and broken wires; lamp switching remains available after an electronics failure. The G14 stores the associated operating hours and switching cycles and produces lamp-lifetime warnings.
Key features
- Seven additional channels per module
- Filament and LED variants

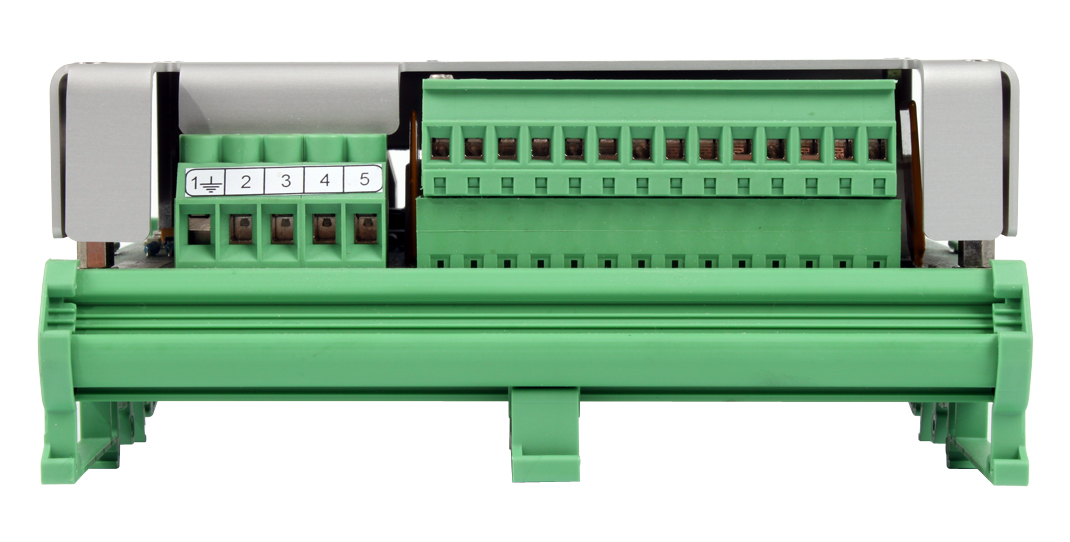

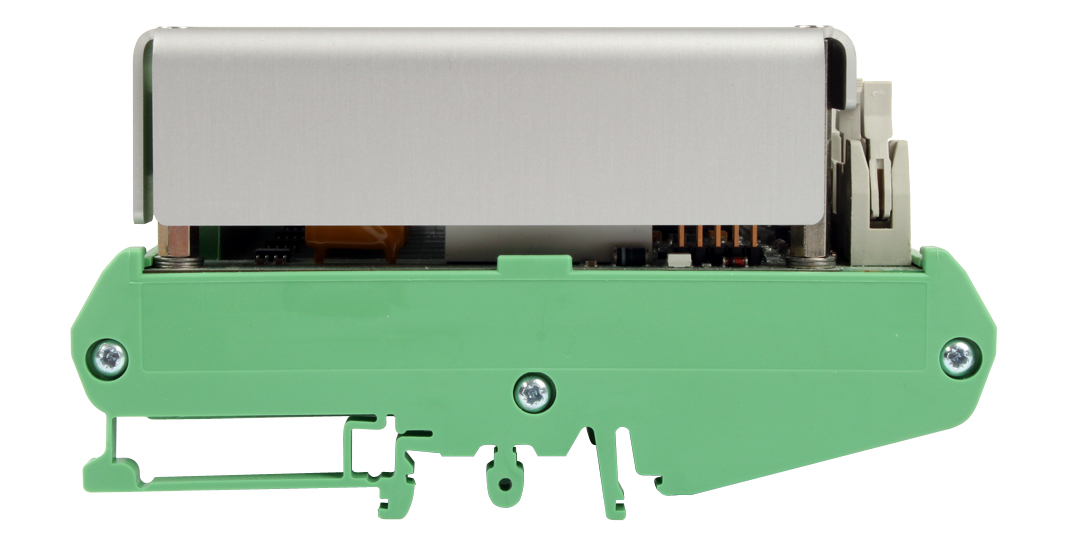

- Standard-rail housing for consoles, panels or control boxes
Model-dependent lamp voltage
Lamp voltage depends on the supplied model: 24 V DC, 24 V AC, 115 V AC or 230 V AC. The manufacturer lists filament and LED versions; the 24 V AC entry is a filament-lamp version. The electronics supply is provided from AHD-DPS02 G14 over the ribbon-cable connection.
Approvals
Manufacturer-listed approvals: ABS, BV, CRS, DNV, LR, PRS, RINA.
