AHD 502 — Böning Bow Thruster Operating Unit

The Böning AHD 502 provides bridge and bridge-wing control of an AHD 501 bow-thruster installation.

Original Product OEM Quality

Availability

TH 36 Marine StockAvailability on request
SKU: TH36-LP-001803
Category: ,
Brands:

Description

Overview

The Böning AHD 502 provides bridge and bridge-wing control of an AHD 501 bow-thruster installation.

Operation and integration

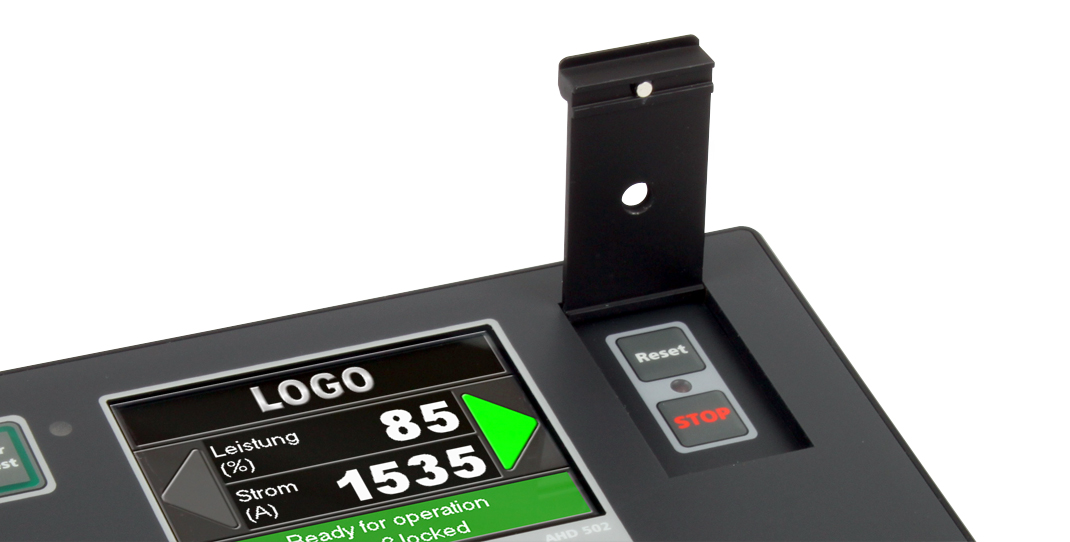

Illuminated keys select power levels, and a 3.5-inch transflective TFT with backlight displays operating state, motor current, alarms and menus. Identical panel hardware simplifies spare holding. The master manages Power Request to the power-management system and receives Power Ready feedback.

Key features

  • Three CAN interfaces
  • Automatic/adjustable dimming
  • Audible/visual alarms and potential-free collective-alarm/horn contacts
  • Service pages for internal states, alarm memory and overcurrent limits
  • Direct emergency-stop switching remains effective after system failure
  • Optional AHD-PS 15 input for an external joystick
  • Isolated RS422 VDR interface using IEC61162-1 protocol
  • 24 V DC +30%/−25%, maximum 0.5 A
  • 192 × 144 mm front,45 mm depth
  • IP67
  • Approximately 1 kg

Operating panels

An AHD 501 installation can be connected to up to four AHD 502 operating panels.

Additional information

Manufacturer product family

Spare Parts & Refit

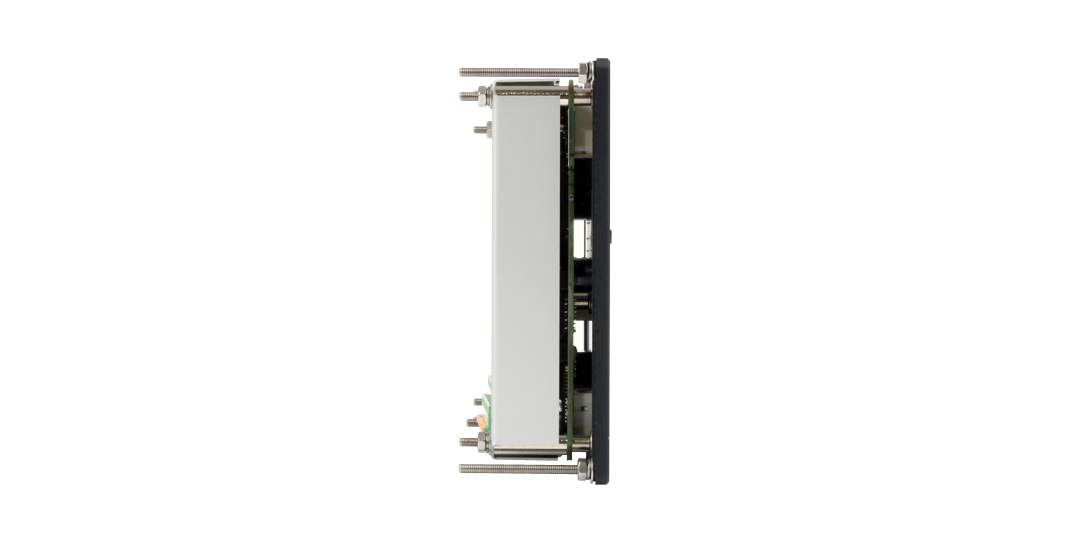

Dimensions (W x H x D)

192 x 144 x 45 mm

Weight

0.9 kg

Operating temperature

−25 °C to +70 °C

Storage temperature

−50 °C to +85 °C

Protection class

IP66 front; IP20 rear

Power supply

24 V DC (+30% / −25%)

Current consumption, max.

0.5 A

Display

3.5-inch TFT display; 320 x 240 pixels; transflective, with adjustable backlight

Serial input

1 x serial input; optional control by external joystick via AHD-PS 15

Binary input

1 x binary optocoupler for Power Request (Power Ready) feedback signalization

Safe distance to compass

Standard magnetic compass: 0.65 m
Steering magnetic compass: 0.40 m

Emergency-stop output

1 x contact; permissible contact load 40 V DC or 250 V AC / 2 A

Power-request, common-alarm and external-horn outputs

3 x relay contact; permissible contact load 40 V DC / 6 A

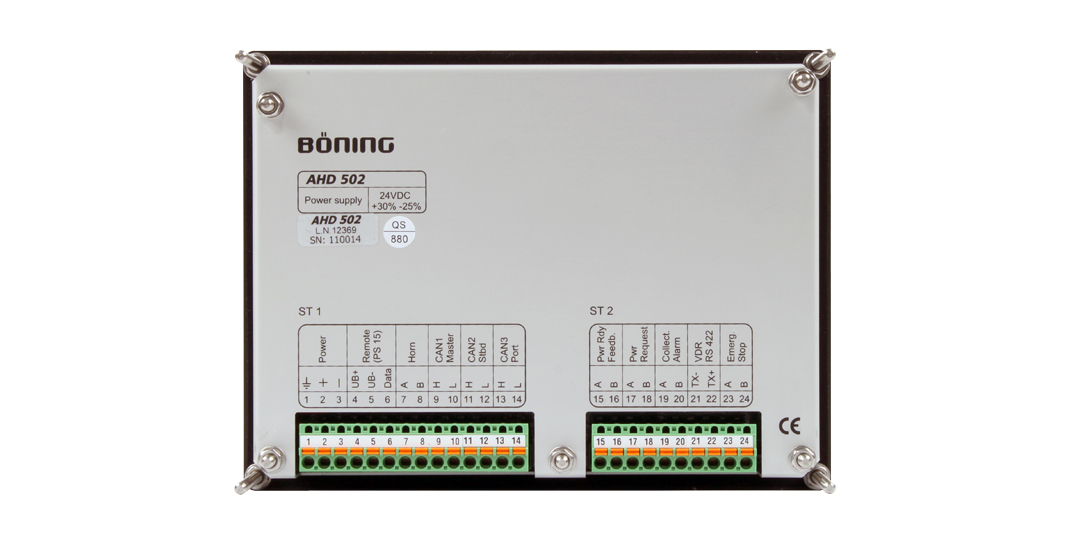

Interfaces

3 x CAN bus for bus communication
1 x RS422 for voyage data recorder (VDR), galvanically isolated; protocol according to IEC 61162-1

Button inputs

7 x foil push button for power-stage command request with integrated feedback LED
2 x foil push button for power request and emergency stop with integrated feedback LED
5 x foil push button for acknowledgement, display and menu control

Approvals

— (none named in the table)
