Electric actuator with an internal electronic board, 70 mm stroke and 100 N nominal lifting force for mechanical gear or speed setting.
Electric actuator with an internal electronic board for marine gear shifting or engine-speed setting using mechanical levers. This version has a 70 mm nominal stroke.
Rated supply is 24 V DC with 4 A nominal current consumption. Nominal lifting force is 100 N and nominal lifting speed is 70 mm/s. The catalogue specifies IP54 protection and an operating temperature of -25 to +60 °C.
| Part Number | 3236981000 |
|---|---|
| Supply voltage | 24 V DC |
| Nominal current | 4 A |
| Nominal stroke | 70 mm |
| Nominal lifting force | 100 N |
| Nominal lifting speed | 70 mm/s |
| Ingress protection | IP54 |
| Operating temperature | -25 to +60 °C |
| Weight | 1.8 kg |
| Operating mode | S5 – 40% |

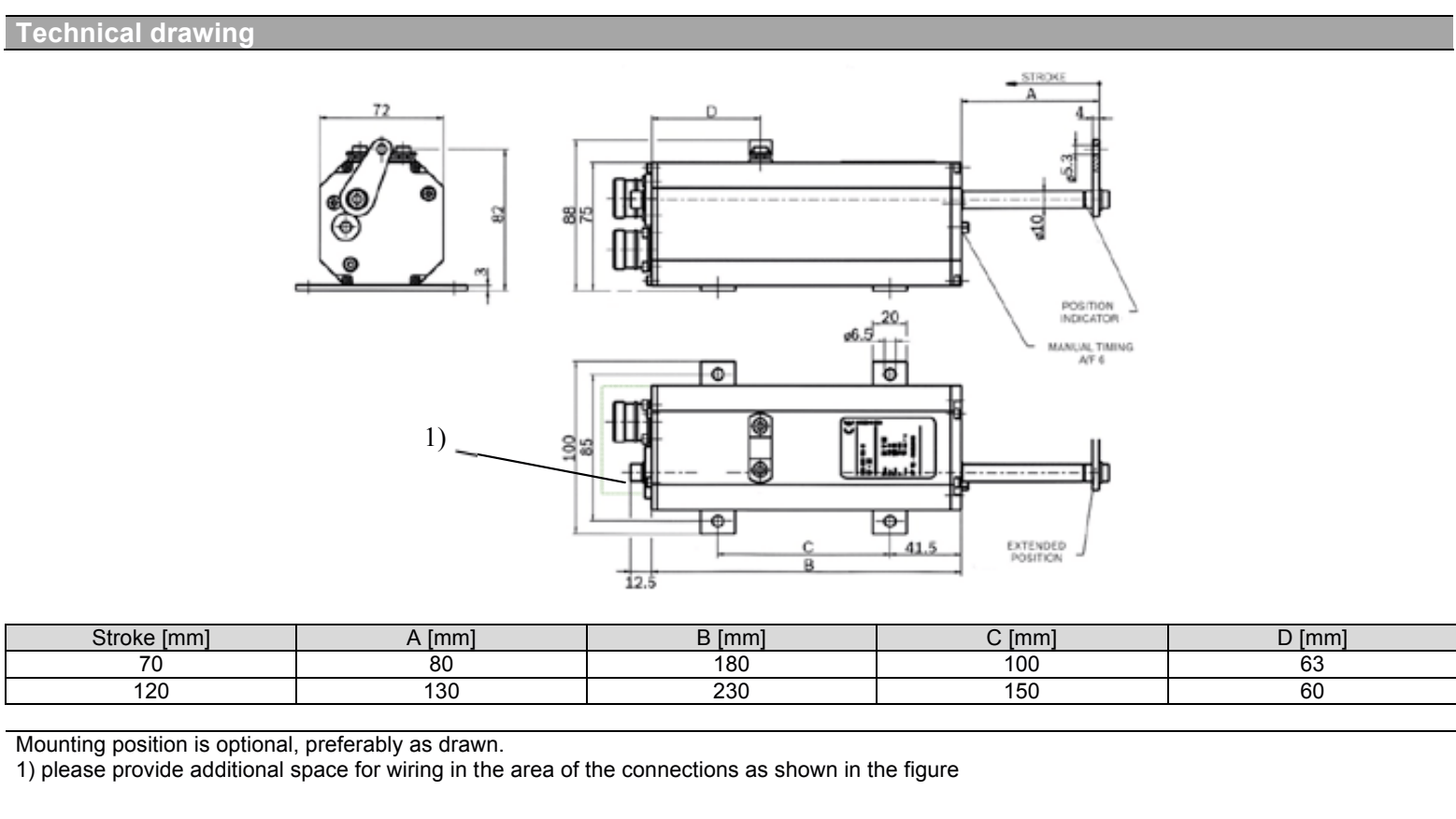

| Drawing dimension A | 80 mm |
| Drawing dimension B | 180 mm |
| Drawing dimension C | 100 mm |
| Drawing dimension D | 63 mm |
| Brochure: | Marex OS marine remote control system |
|---|---|
| Manufacturer information: | Marex OS product family and documents |
