Description
Overview

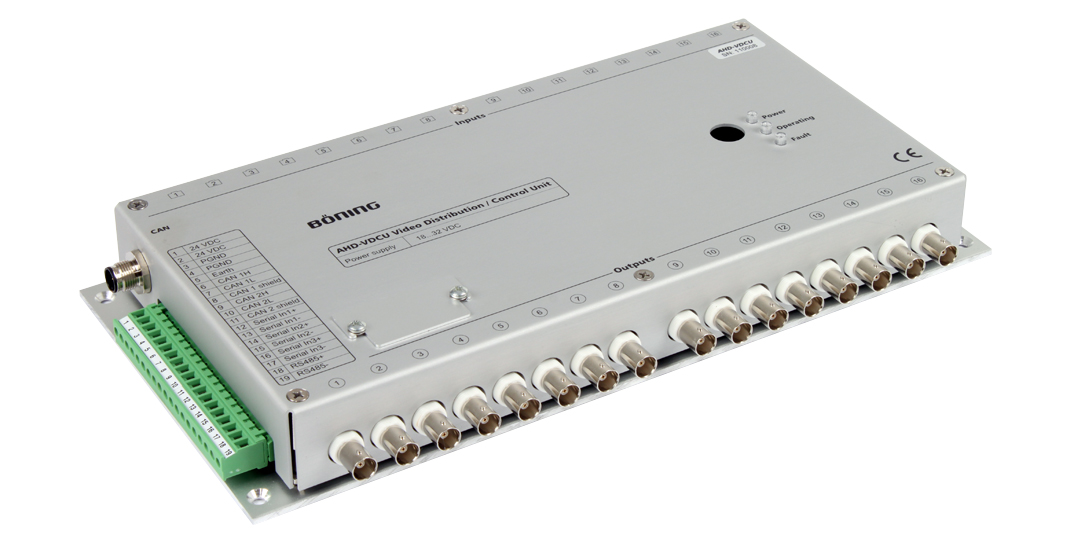

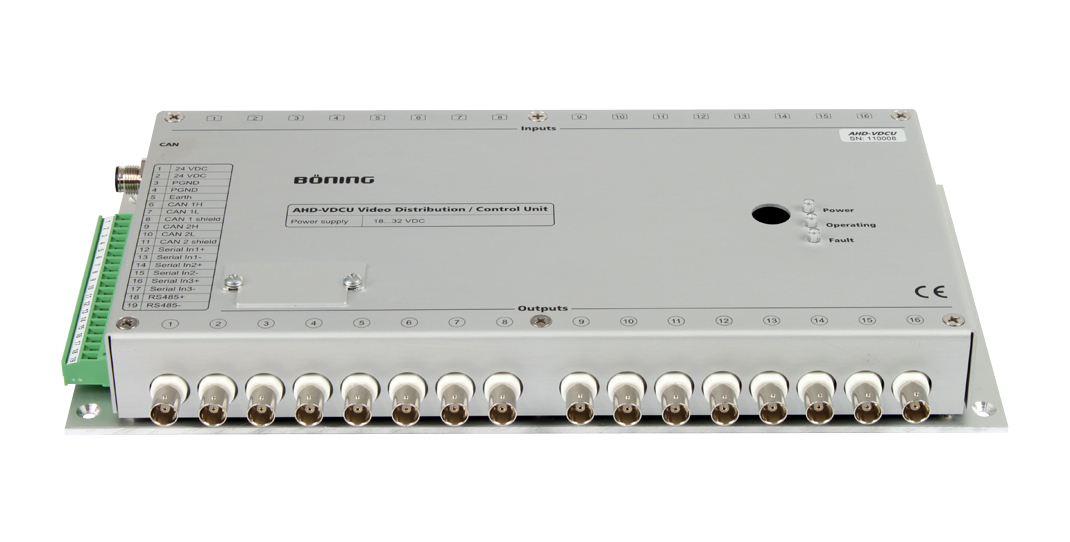

The Böning AHD-VDCU is the central video matrix of the AHD-VCS system, routing camera images and forwarding control commands.
Operation and integration
Eight- or sixteen-channel versions allocate RJ45 camera inputs to BNC outputs. CAN commands from panel PCs, displays or AHD-VCP select sources and operate supported camera functions such as positioning and zoom. Two units can be cascaded for up to 32 cameras; one or two video-quad processors may also be controlled.
Key features
- 8 × 8 or 16 × 16 matrix

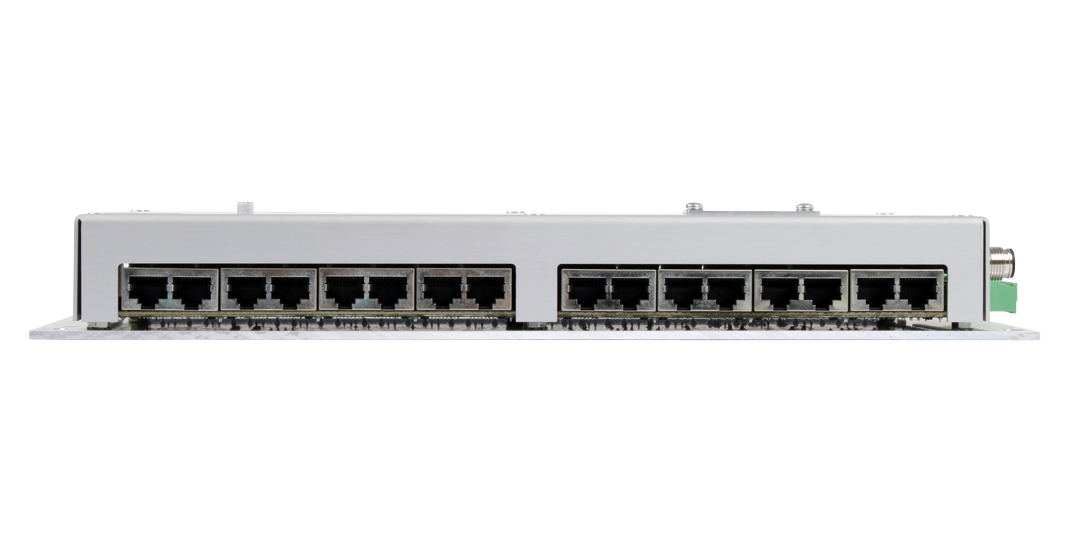

- RJ45/CAT5 carries video, control and suitable camera power through the required AHD-VSC converter
- Camera-specific AHD-VSC XX or AHD-SEC2 adaptation is required

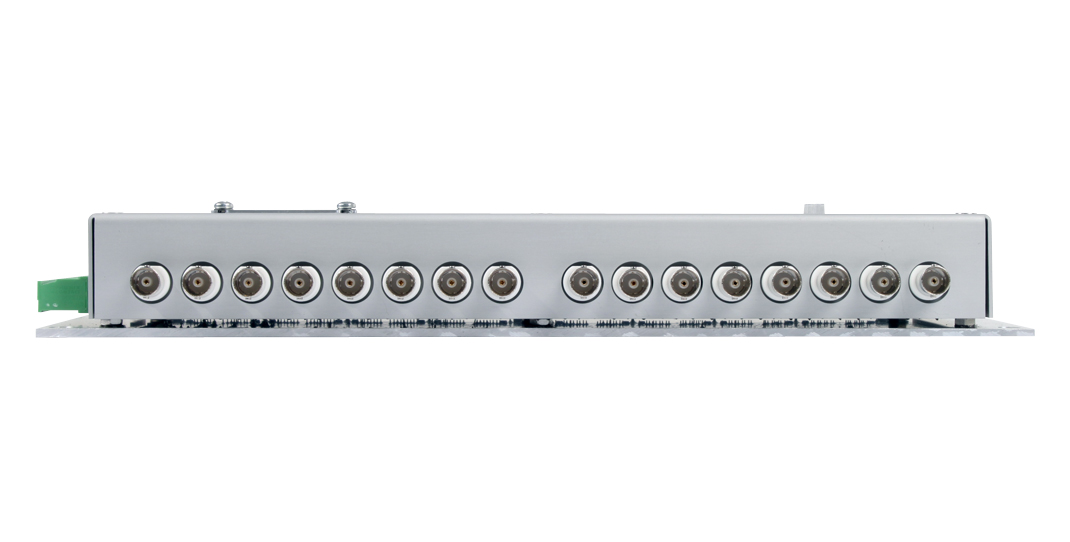

- BNC outputs:1 Vpp,75 ohms
- 16/16+16 version adds 16 direct bypass outputs for equipment such as recorders
- Three serial inputs for optional configured functions
- Optional AHD-VCS Q4-1 quad output
- Baseplate mounting in consoles, desks, panels or boxes
