Böning AHD-VCP — video system control panel

AHD-VCP — Böning Video System Control Panel

The Böning AHD-VCP selects camera sources through the AHD-VDCU video router and operates supported camera functions.

Original Product OEM Quality

Availability

TH 36 Marine StockAvailability on request

SKU: TH36-LP-001726

Category: Böning, CCTV Video Components, Control Panels

Brands: Böning

Description

Overview

The Böning AHD-VCP selects camera sources through the AHD-VDCU video router and operates supported camera functions.

Operation and integration

Front keys select the channel for the associated monitor. PTZ functions depend on the camera and include pan, tilt, zoom, focus and preset positions. Up to four positions per camera can be saved and selected; numeric indication shows the selected channel/preset. A long press of Menu opens a supported camera OSD, navigated with the other keys.

Key features

Fault LED for device/communication errors
Automatically dimmed illuminated controls
CAN link to AHD-VDCU
Indoor/outdoor console, desk or armrest installation
70 × 130 mm front
Camera-specific functions remain dependent on camera capabilities

Additional information

Manufacturer product family	CCTV Video Components, Control Panels
Dimension, W x H x D	70 x 130 x 65 mm
Panel cutout, W x H	60 x 112.5 mm

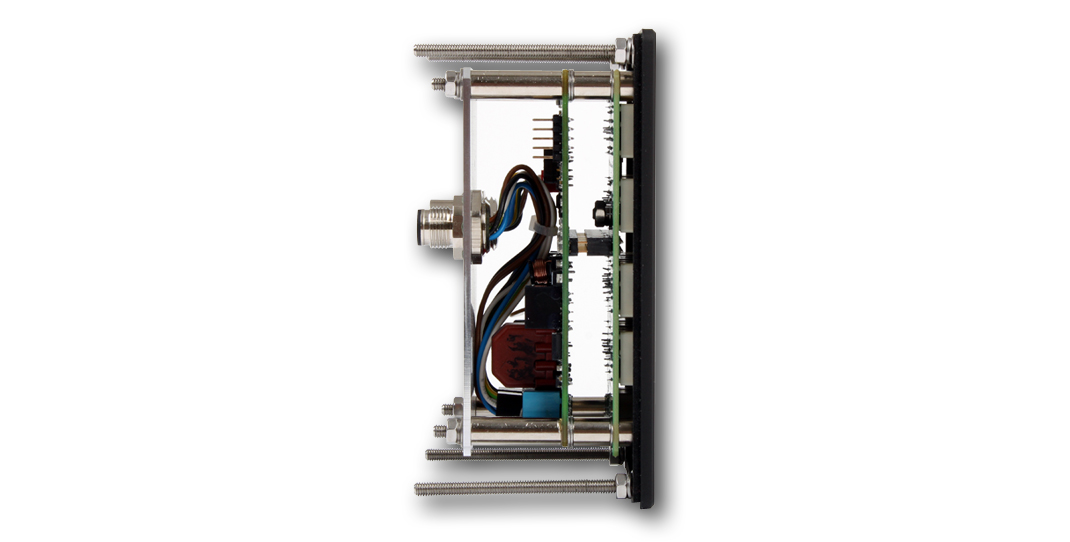

Required installation depth	Min. 100 mm
Weight	Approx. 0:2 kg
Operating temperature	-25 °C … +70 °C
Storage temperature	-30 °C … +85 °C
Ingress protection	Front side: IP67 Rear side: IP10
Power supply	24 V DC (+30%/-25%)
Power consumption	Approx. 30 mA (24 V DC)

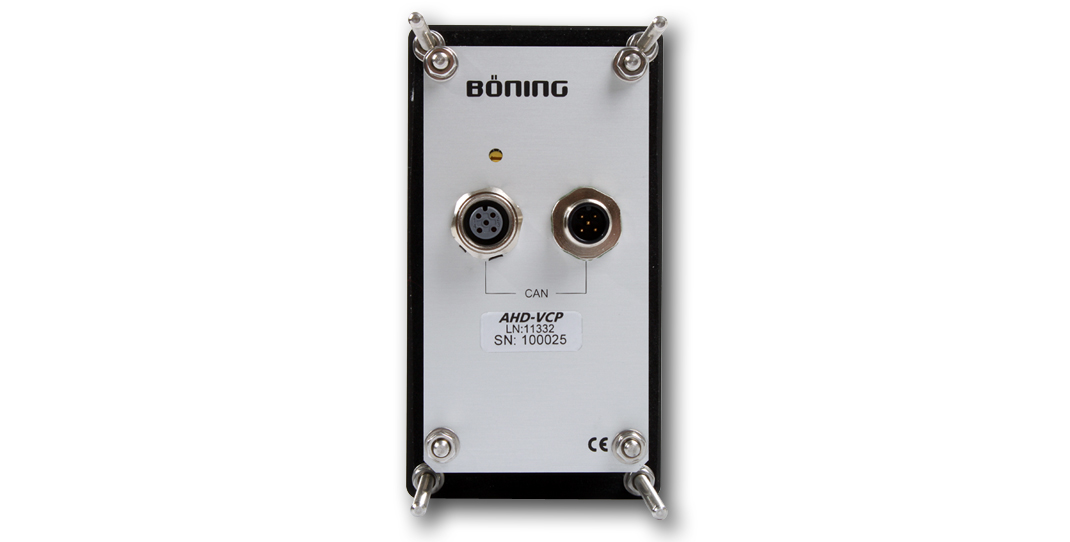

Interfaces	1 x CAN bus (Input/Output)
Item number 11332	AHD-VCP (Standard-Design)
Item number 12483	AHD-VCP G2 (V-Neu Design)
CAN ID configuration	If CAN ID (rotary + DIP switch) = 00, set the address using the front-panel buttons: activate mode using Focus and simultaneously Focus+ / Focus−; set the address using Channel− / Channel+ (display = 1..98); save by pressing Focus+ and Focus− simultaneously.
