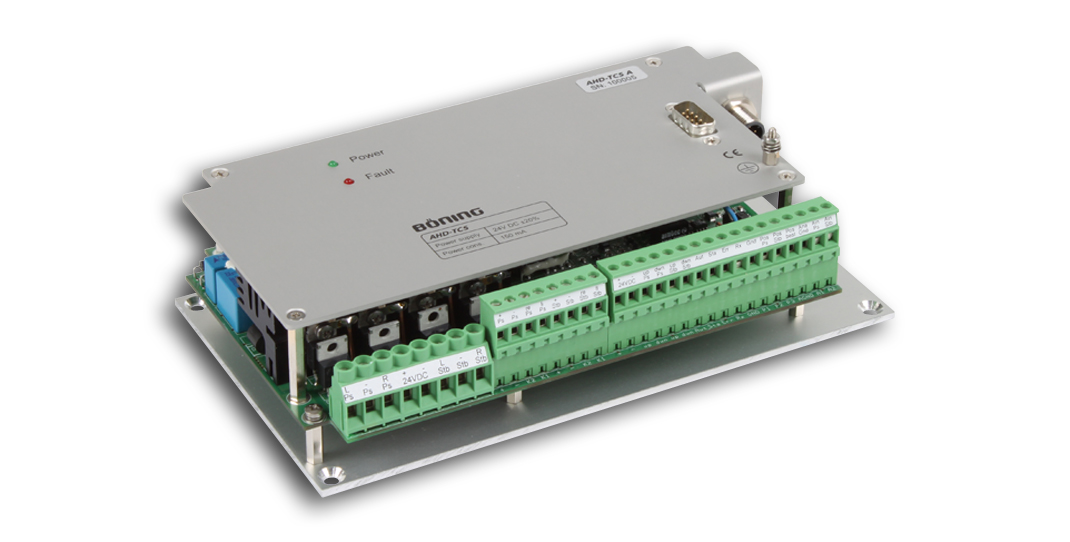

Böning AHD-TCS A — trim tab electronic control
Böning AHD-TCS A — trim tab electronic control
Böning AHD-TCS A — trim tab electronic control
Böning AHD-TCS A — trim tab electronic control
Böning AHD-TCS A — trim tab electronic control
Böning AHD-TCS A technical illustration
Böning AHD-TCS A technical illustration
© Böning Ship Automation. Image courtesy of Böning.

AHD-TCS A — Böning Trim Tab Electronic Control

The Böning AHD-TCS A acquires trim-system measurements, positions and control inputs and directly operates port/starboard hydraulic units for trim tabs or surface drives.

Original Product OEM Quality

Availability

TH 36 Marine StockAvailability on request
SKU: TH36-LP-001794
Category: ,
Brands:

Description

Overview

The Böning AHD-TCS A acquires trim-system measurements, positions and control inputs and directly operates port/starboard hydraulic units for trim tabs or surface drives.

Operation and integration

Automatic positioning uses stored vessel-specific trim curves against current speed and position. Electronic flowmeters replace conventional exposed position-sensor wiring. Vessel speed can arrive from a GPS input or CAN; analogue inputs acquire port/starboard flow and inclination.

Key features

  • CAN integration with graphical ship-alarm displays
  • 0–10 V analogue position outputs for round instruments
  • Direct hydraulic-unit control outputs
  • Dedicated AHD-TCS OP A interface
  • Baseplate mounting in consoles, desks, panels or boxes

Additional information

Manufacturer product family

Trim Tabs Control System
Power supply — AHD-TCS HYD

24 V DC via TCS electronics
Current consumption — AHD-TCS HYD

Typically 16 A
Operating temperature — AHD-TCS HYD

-25 °C … 70 °C
Storage temperature — AHD-TCS HYD

-30 °C … 85 °C
Weight — AHD-TCS HYD

11 kg
Protection class — AHD-TCS HYD

IP 65
Exterior dimensions — AHD-TCS HYD

269 mm x 176 mm x 135 mm
Hydraulic oil filling level — AHD-TCS HYD

At least 0.75 l (holding tank)
Inputs — AHD-TCS HYD

Hydraulic aggregate R, L, –
Outputs — AHD-TCS HYD

Flow meter re, li, +, –
Power supply — AHD-TCS A

24 V DC
Current consumption — AHD-TCS A

150 mA
Operating temperature — AHD-TCS A

-25 °C … 70 °C
Storage temperature — AHD-TCS A

-30 °C … 85 °C
Weight — AHD-TCS A

0.7 kg
Protection class — AHD-TCS A

IP 10
Exterior dimensions — AHD-TCS A

215 mm x 120 mm x 48 mm
Ports — AHD-TCS A

1 x CAN, 1 x RS232
Inputs — AHD-TCS A

2 Flow meters, 1 inclination sensor, control unit
Outputs — AHD-TCS A

2 Hydraulic aggregates, 2 display instruments
Power supply — AHD-TCS OP A

24 V DC (+30%/-25%); via TCS electronics
Current consumption — AHD-TCS OP A

100 mA
Operating temperature — AHD-TCS OP A

-25°C…+70°C
Storage temperature — AHD-TCS OP A

-30°C…+85°C
Weight — AHD-TCS OP A

Appr. 0.2 kg
Protection class — AHD-TCS OP A

IP 66 (frontside), IP 10 (rear)
Exterior dimensions — AHD-TCS OP A

70 mm x 130 mm x 94 mm
Panel cutout — AHD-TCS OP A

60 mm x 112.5 mm
Inputs — AHD-TCS OP A

Power supply
Outputs — AHD-TCS OP A

Control commands to AHD-TCS A
Hydraulic aggregate requirement

One AHD-TCS HYD unit required per trim tab
Dimensions and technical drawings

Manufacturer system documentation, document ID PaB-1219.
Recommended trim tab — Planing hull, 5–10 m

Boat length 5 m (16.5') to 10 m (33'); displacement < 17 tons; speed < 40 knots; recommended size 300 x 300 mm.
Recommended trim tab — Planing hull, 10–15 m

Boat length 10 m (33') to 15 m (50'); displacement < 35 tons; speed < 40 knots; recommended size 500 x 300 mm.
Recommended trim tab — Planing hull, 15–17 m

Boat length 15 m (50') to 17 m (56'); displacement < 35 tons; speed < 40 knots; recommended size 750 x 410 mm.
Recommended trim tab — Planing hull, 17–18 m

Boat length 17 m (56') to 18 m (60'); displacement < 35 tons; speed < 40 knots; recommended size 800 x 360 mm.
Recommended trim tab — Planing hull, 18–19 m

Boat length 18 m (60') to 19 m (62'); displacement < 55 tons; speed < 40 knots; recommended size 800 x 410 mm.
Recommended trim tab — Planing hull, 19–21 m

Boat length 19 m (62') to 21 m (69'); displacement < 55 tons; speed < 40 knots; recommended size 900 x 410 mm.
Recommended trim tab — Planing hull, 21–24 m

Boat length 21 m (69') to 24 m (79'); displacement < 130 tons; speed < 35 knots; recommended size 1000 x 460 mm.
Recommended trim tab — Displacement hull, 10–15 m

Boat length 10 m (33') to 15 m (50'); displacement < 15 tons; speed < 18 knots; recommended size 500 x 300 mm.
Recommended trim tab — Displacement hull, 15–17 m

Boat length 15 m (50') to 17 m (56'); displacement < 37 tons; speed < 18 knots; recommended size 800 x 300 mm.
Recommended trim tab — Displacement hull, 17–18 m

Boat length 17 m (56') to 18 m (60'); displacement < 37 tons; speed < 18 knots; recommended size 900 x 410 mm.
Recommended trim tab — Displacement hull, 18–19 m

Boat length 18 m (60') to 19 m (62'); displacement < 55 tons; speed < 18 knots; recommended size 1000 x 460 mm.
Recommended trim tab — Displacement hull, 19–21 m

Boat length 19 m (62') to 21 m (69'); displacement < 55 tons; speed < 18 knots; recommended size 1000 x 460 mm.
Recommended trim tab — Displacement hull, 21–24 m

Boat length 21 m (69') to 24 m (79'); displacement < 130 tons; speed < 18 knots; recommended size 1000 x 460 mm.
