Description
Overview

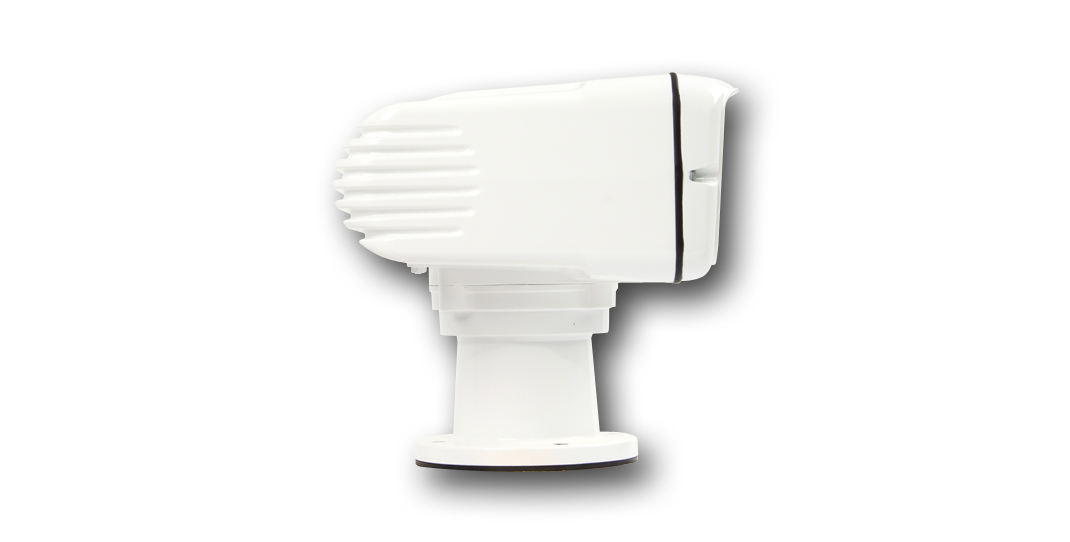

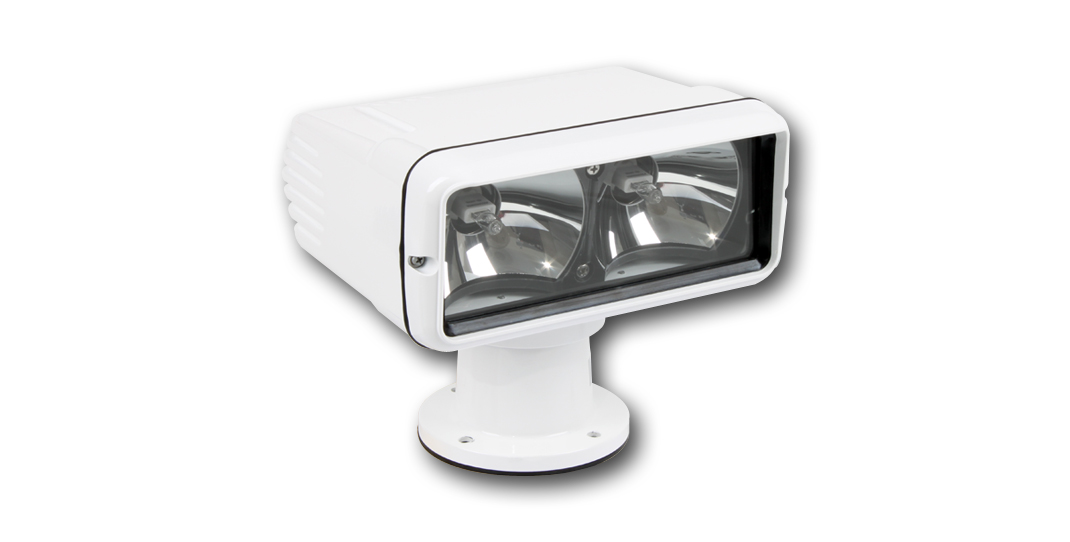

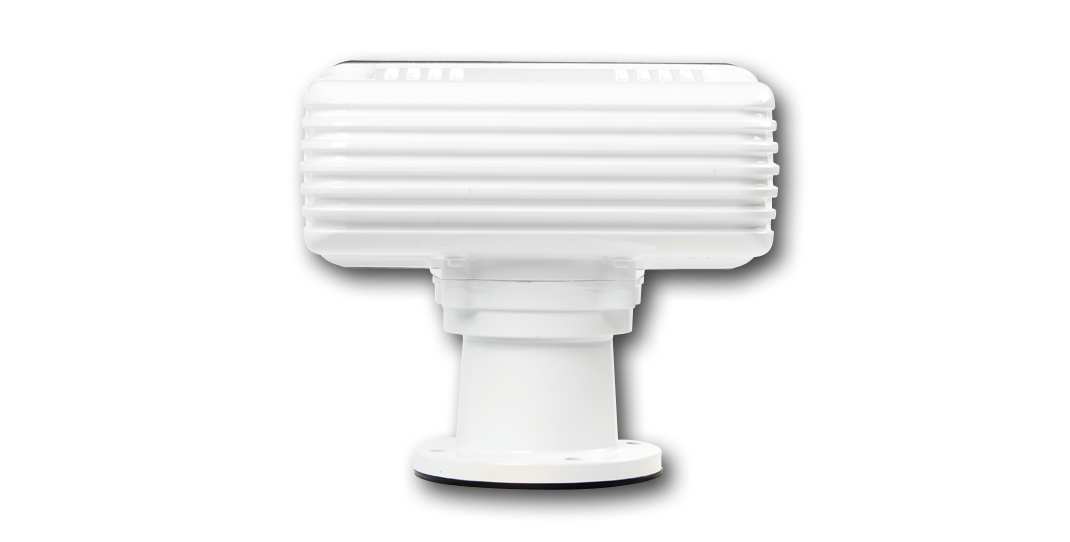

The AHD-SL Halogen / HR1012 uses two 55 W halogen lamps and a reflector insert in a seawater-resistant die-cast aluminium searchlight housing.
Operation and integration
Motorised four-direction aiming is remotely operated through a suitable AHD-SLP button or joystick panel.
Key features
- Lamp supply 24 V DC and positioning supply 12 V DC
- 160,000 cd at 24 V
- Range up to 500 m
- Beam spread approximately 7° horizontal/5° vertical
- Continuous 360° rotation
- Vertical travel 9° up/17° down
- Rotation 21°/s fast or 20°/s slow
- Vertical speed 2.8°/s
- Approximately 232 × 199 × 206 mm
- IP56
- 3.25 kg
