Description
Overview

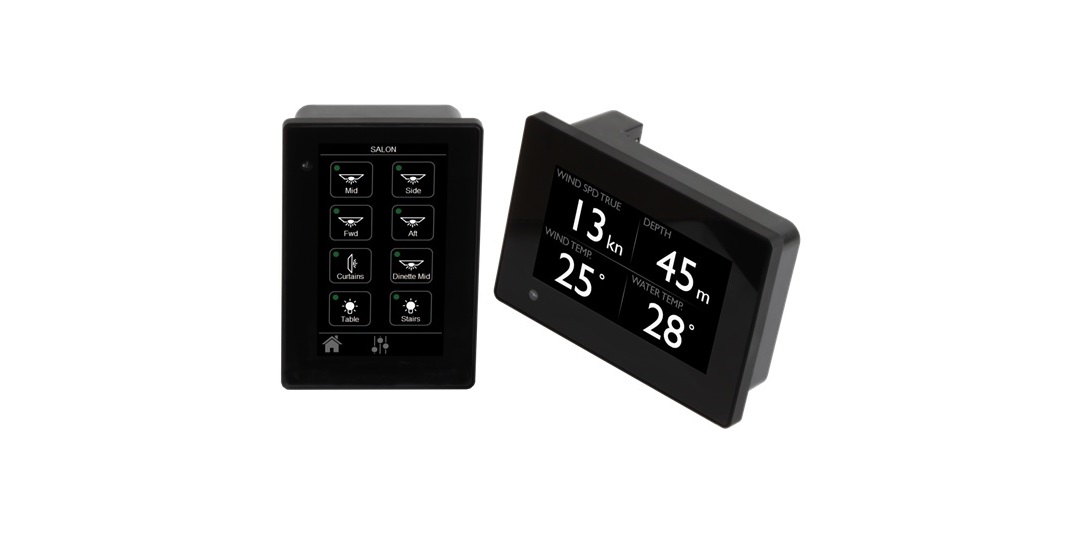

The Böning AHD 430 is a shallow cabin touchscreen for lighting, climate, blinds, multimedia and other configured functions.
Operation and integration
Project-specific pages determine the switches and systems shown. CAN links the display to the data stations that operate the equipment. A buzzer reports faults, and the interface supports alarm notification and acknowledgement.
Key features
- Portrait or landscape wall installation
- Automatic brightness adjustment
- Direct CabinCon or Böning ship-alarm connection
- Compact lightweight panel/cabinet arrangement
- Individually designed graphical pages
Technical specifications
- Weight: Ca. 0.35 kg.
- Storage temperature: -30°C … +80°C.
- Protection class: IP 22 (front).
- Power supply: 24 V DC (+30% / -25%).
