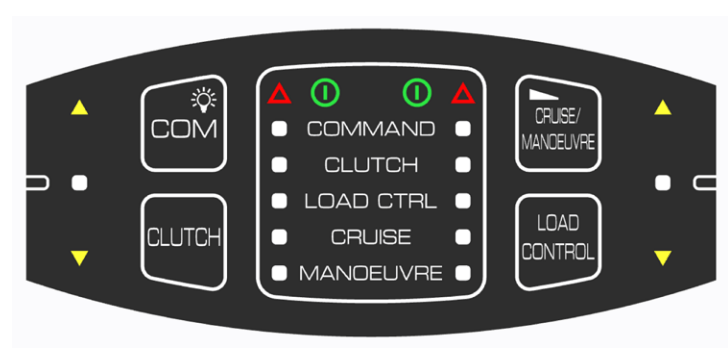

AVENTICS R417004041 Type 251 G3 control-head keypad — front view of the control-head keypad

Control Head Type 251 G3 Palm Beach

Type 251 Generation 3 Palm Beach operating unit for controllable-pitch propulsion, for configured Marex OS and Marex MCS systems.

Original Product OEM Quality

Availability

Standard Lead Timeon request

Lead Time CategoryMTO

TH 36 Marine Stock0

Part Number: R417004041

SKU: TH36-LP-001637

Category: Control Heads, Marex OS

Brands: Aventics

Replaces: R417003391

Description

AVENTICS R417004041 is a Type 251 Generation 3 Palm Beach operating unit for controllable-pitch propulsion. The panel provides illuminated controls and status indicators for marine propulsion control.

Designed for Marex OS and Marex MCS systems, with IP66 protection above and below the desk when cables are connected. Operating temperature: -25 to +70 °C.

This part number identifies the control unit. Matching potentiometers, levers and system components must be specified separately. Confirm the vessel configuration before ordering.

Additional information

Part Number	R417004041
Series	Type 251 Generation 3
Application	controllable-pitch propulsion
Ingress protection	IP66 with cables connected
Operating temperature	-25 to +70 °C
Supplied item	Control unit; matching system components specified separately

Downloads

Brochure:	AVENTICS Marex OS – Marine Technology
Brochure:	Marex Ship and Valve Controls
Installation instructions:	Control head Type 251 Generation 3 assembly instructions
STEP and other CAD formats:	Manufacturer CAD downloads
Manufacturer information:	Product information and latest documents
