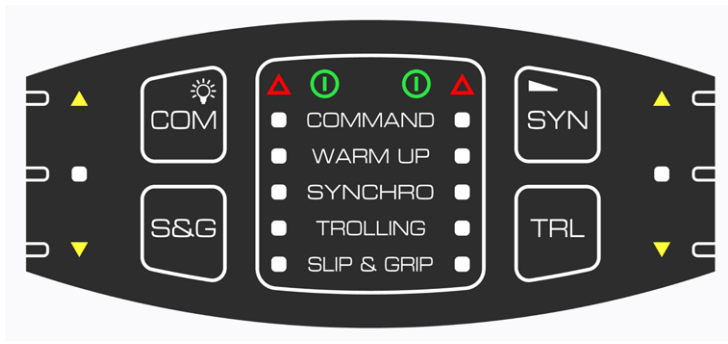

AVENTICS R417004040 Type 251 G3 control-head keypad — front view of the control-head keypad

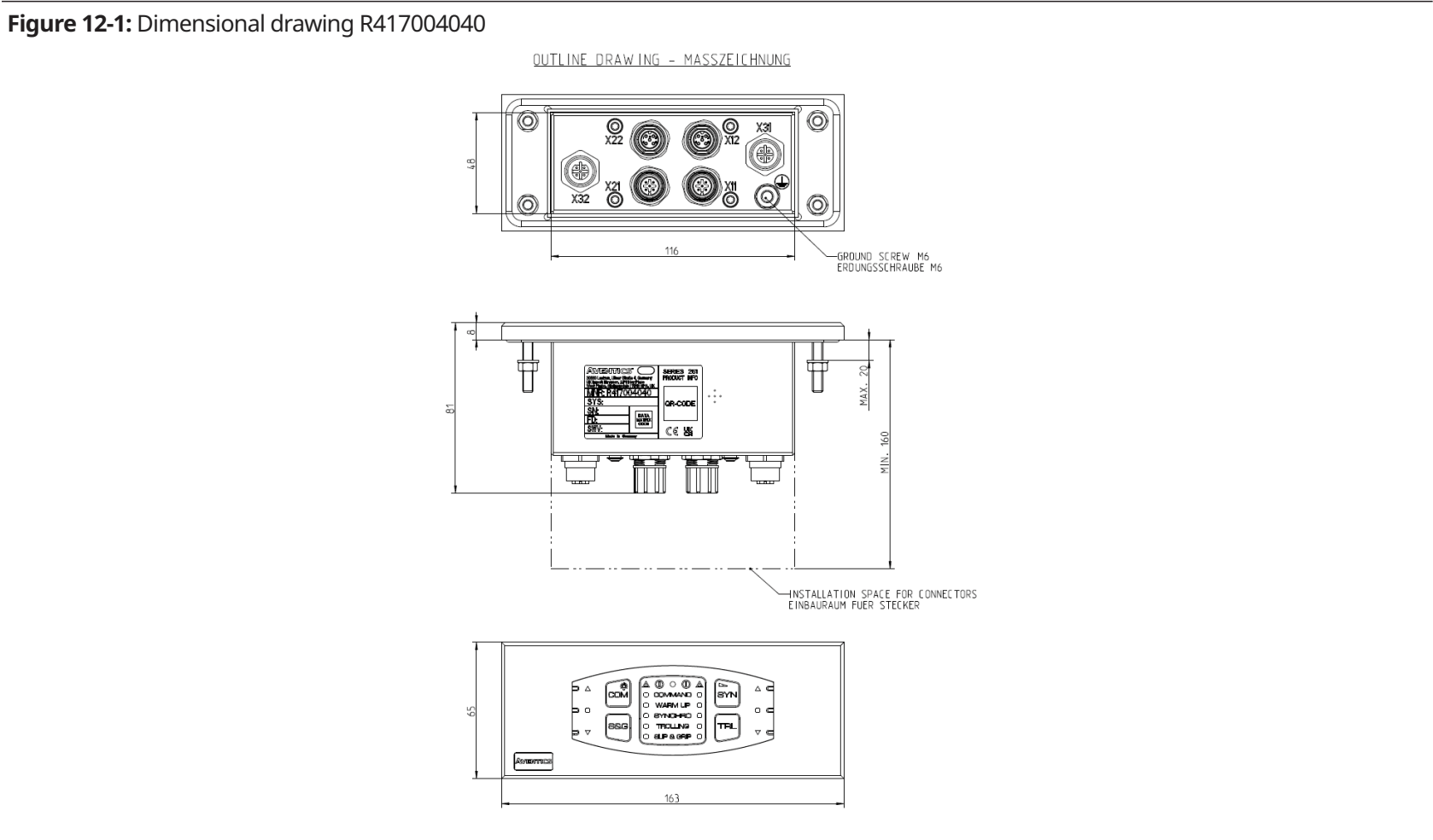

AVENTICS R417004040 dimension drawing — manufacturer technical drawing with dimensioned component views
© AVENTICS

Control Head Type 251 G3 Palm Beach

Type 251 Generation 3 Palm Beach operating unit for fixed-pitch propulsion with trolling and Slip & Grip functions, for configured Marex OS and Marex MCS systems.

Original Product OEM Quality

Availability

Standard Lead Timeon request
Lead Time CategoryMTO
TH 36 Marine Stock0
Part Number: R417004040
SKU: TH36-LP-001634
Category: ,
Brands:
Replaces: R417003194

Description

AVENTICS R417004040 is a Type 251 Generation 3 Palm Beach operating unit for fixed-pitch propulsion with trolling and Slip & Grip functions. The panel provides illuminated controls and status indicators for marine propulsion control.

Designed for Marex OS and Marex MCS systems, with IP66 protection above and below the desk when cables are connected. Operating temperature: -25 to +70 °C.

This part number identifies the control unit. Matching potentiometers, levers and system components must be specified separately. Confirm the vessel configuration before ordering.

Additional information

Part Number

R417004040
Series

Type 251 Generation 3
Application

fixed-pitch propulsion with trolling and Slip & Grip functions
Ingress protection

IP66 with cables connected
Operating temperature

-25 to +70 °C
Supplied item

Control unit; matching system components specified separately

Downloads

Brochure:AVENTICS Marex OS – Marine Technology
Brochure:Marex Ship and Valve Controls
Installation instructions:Control head Type 251 Generation 3 assembly instructions
STEP and other CAD formats:Manufacturer CAD downloads
Manufacturer information:Product information and latest documents
