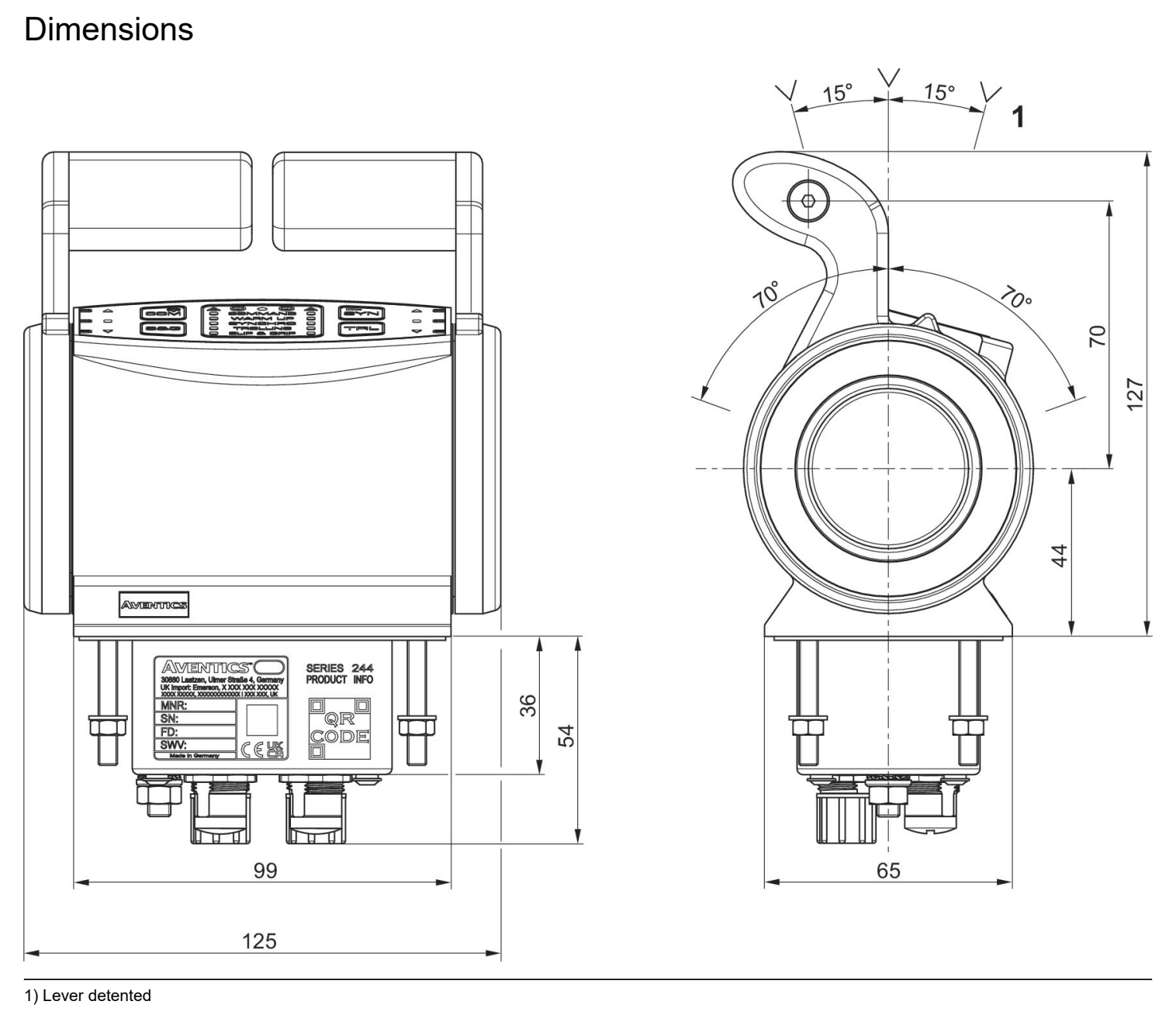

AVENTICS R417004015 dimension drawing — manufacturer dimension drawing
© AVENTICS

Control Head Type 244-G3-E2-SFN-CS

Generation 3 marine control head, 244-G3-E2-SFN-CS. Confirm system configuration and installation requirements before retrofit.

Original Product OEM Quality

Availability

Standard Lead Timeon request
Lead Time CategoryMTO
TH 36 Marine Stock0
Part Number: R417004015
SKU: TH36-LP-001624
Category: ,
Brands:
Replaces: R417003262, R417003372

Description

AVENTICS R417004015, Marex Type 244 Generation 3 control head, configuration 244-G3-E2-SFN-CS. Fibre-glass reinforced polyamide housing with IP66 protection.

Confirm system configuration and installation requirements before retrofit.

Additional information

Part Number

R417004015
Model

244-G3-E2-SFN-CS
Ingress protection

IP66
Housing

Fibre-glass reinforced polyamide

Downloads

Brochure:AVENTICS Marex OS – Marine Technology
Brochure:Marex Ship and Valve Controls
Installation instructions:Control head Type 244 Generation 3 assembly instructions
Datasheet:R417004015 technical datasheet
STEP and other CAD formats:Manufacturer CAD downloads
Manufacturer information:Product information and latest documents
